Bisque Development Environment Setup Instructions ¶

This guide details the installation of a bisque server on an Ubuntu 16.04 LTS environment.

Project Source

Github: https://github.com/UCSB-VRL/bisque

Developer Installation

Bisque Github Pages: https://ucsb-vrl.github.io/bisque-dev/guides/bisque

Reference

Setup for Ubuntu 16.04¶

Pre-requisites¶

sudo apt-get install -y python python-dev python-virtualenv python-numpy python-scipy
sudo apt-get install -y libxml2-dev libxslt1-dev libhdf5-dev
sudo apt-get install -y libmysqlclient-dev libpq-dev mercurial git cmake
sudo apt-get install -y postgresql postgresql-client libsqlite3-dev
sudo apt-get install -y python-paver python-setuptools
sudo apt-get install -y graphviz libgraphviz-dev pkg-config
sudo apt-get install -y openslide-tools  python-openslide
sudo apt-get install -y libfftw3-dev libbz2-dev libz-dev
sudo apt-get install -y liblcms2-dev libtiff-dev libpng-dev
sudo apt-get install -y libgdcm2.6 libopenslide-dev libopenslide0

Install Openjpeg

git clone https://github.com/uclouvain/openjpeg
cd openjpeg && mkdir build && cd build
cmake .. -DCMAKE_BUILD_TYPE=Release
sudo make -j4 install
sudo ldconfig

Install BioImageConvert

# Ubuntu 18 version
wget https://bitbucket.org/dimin/bioimageconvert/downloads/imgcnv_ubuntu18_2.5.0.tar.gz

# Ubuntu 16 version
wget https://bitbucket.org/dimin/bioimageconvert/downloads/imgcnv_ubuntu16_2.4.3.tar.gz
tar -xvzf imgcnv_ubuntu16_2.4.3.tar.gz

sudo cp imgcnv_ubuntu16_2.4.3/imgcnv /usr/local/bin/
sudo cp imgcnv_ubuntu16_2.4.3/libimgcnv.so.2.4.3 /usr/local/lib/
sudo ln -s /usr/local/lib/libimgcnv.so.2.4.3 /usr/local/lib/libimgcnv.so.2.4
sudo ln -s /usr/local/lib/libimgcnv.so.2.4 /usr/local/lib/libimgcnv.so.2
sudo ln -s /usr/local/lib/libimgcnv.so.2 /usr/local/lib/libimgcnv.so
sudo ldconfig

Alternately, Compile by source and Install (You are on your own here)

hg clone --insecure http://biodev.ece.ucsb.edu/hg/imgcnv
cd imgcnv && make -j6
sudo make install

A. Clone the repository and Prepare Virtual Environment¶

We will clone the stable repository and work inside a python virtual environment for setup requirements.

git clone https://github.com/UCSB-VRL/bisque.git bisque-stable

Its always a good practive to use a virtualenv to develop projects

sudo pip install virtualenvwrapper

Edit ~/.bashrc and export the following variables
In case of issues around virtualenvwrapper make sure the paths in the variables below exist

# virtualenv and virtualenvwrapper
export PATH=/usr/local/bin:$PATH
export VIRTUALENVWRAPPER_PYTHON=/usr/bin/python
export VIRTUALENVWRAPPER_VIRTUALENV=/usr/local/bin/virtualenv
source /usr/local/bin/virtualenvwrapper.sh

Now load this using "source ~/.bashrc"
Create a virtual envrionment "mkvirtualenv -p /usr/bin/python2 bqdev"
Change environment "workon bqdev"

Deprecated Bootstrap Installer (Do Not Use this Script)¶

$ mkdir bisque && cd bisque
$ wget http://biodev.ece.ucsb.edu/projects/bisquik/export/tip/bisque-stable/contrib/bootstrap/bisque-bootstrap.py
$ python bisque-bootstrap.py bqenv

# Activate Virtualenv
bisque$ source bqenv/bin/activate

Now Install requirements

pip install -i https://biodev.ece.ucsb.edu/py/bisque/xenial/+simple/ -r requirements.txt

Alternate Index Url for Development: https://biodev.ece.ucsb.edu/py/bisque/dev/+simple
Index Url Debian Stretch: https://biodev.ece.ucsb.edu/py/bisque/stretch/+simple/
Index Url Ubuntu xenial: https://biodev.ece.ucsb.edu/py/bisque/xenial/+simple/

Fix the requirements.txt (Only if the installation fails)

#Fix the requirements.txt file using sed -i 's/.*psycopg2==2.6.1.*/psycopg2==2.7.1./' requirements.txt
psycopg2==2.7.1
Minimatic==1.0
Paste==1.7.5.1
httplib2==0.7.3
#tgext.registration==0.1dev

# Install separately since packages may be deprecated in PyPi
easy_install http://biodev.ece.ucsb.edu/binaries/depot/tgext.registration2/tgext.registration2-0.5.2.tar.gz

B. Configure Bisque Environment¶

Run the Paver setup

$ paver setup

Expected paver log tail

Installing collected packages: bqengine
  Running setup.py develop for bqengine
Successfully installed bqengine

Now run:
bq-admin setup

Run the bq-admin standalone setup

$ bq-admin setup

Expected bq-admin setup log tail (also observe the various inputs in the log for this setup)

  (bqdev) rahul@loup:~/repository/github/bisque$ bq-admin setup
  INFO:root:Generating grammar tables from /usr/lib/python2.7/lib2to3/Grammar.txt
  INFO:root:Generating grammar tables from /usr/lib/python2.7/lib2to3/PatternGrammar.txt
  Developer installation
  DIRS:  {'bin': '/home/rahul/.virtualenvs/bqdev/bin', 'run': '.', 'share': '.', 'plugins': './plugins', 'packages': '/home/rahul/.virtualenvs/bqdev/lib/python2.7/site-packages', 'data': './data', 'virtualenv': '/home/rahul/.virtualenvs/bqdev', 'default': './config-defaults', 'jslocation': 'bqcore', 'modules': './modules', 'depot': './external', 'config': './config', 'public': './public'}
  INFO:root:Generating grammar tables from /usr/lib/python2.7/lib2to3/Grammar.txt
  INFO:root:Generating grammar tables from /usr/lib/python2.7/lib2to3/PatternGrammar.txt
  Developer installation
  DIRS:  {'bin': '/home/rahul/.virtualenvs/bqdev/bin', 'run': '.', 'share': '.', 'plugins': './plugins', 'packages': '/home/rahul/.virtualenvs/bqdev/lib/python2.7/site-packages', 'data': './data', 'virtualenv': '/home/rahul/.virtualenvs/bqdev', 'default': './config-defaults', 'jslocation': 'bqcore', 'modules': './modules', 'depot': './external', 'config': './config', 'public': './public'}
  This is the main installer for Bisque

      The system will initialize and be ready for use after a succesfull
      setup has completed.

      Several questions must be answered to complete the install.  Each
      question is presented with default in brackets [].  Pressing
      <enter> means that you are accepting the default value. You may
      request more information by responding with single '?' and then <enter>.

      For example:
      What is postal abbreviation of Alaska [AK]?

      The default answer is AK and is chosen by simply entering <enter>


  Beginning install of ['bisque', 'engine'] with ['server']
  CALLING  <function install_external_binaries at 0x7f9533ffac08>
  Fetch external binary files from Bisque development server [Y]? Y
  Matched section Linux-64bit-*
  extjs.zip found locally
  bioformats-pack.zip found locally
  libmbgl-linux-64-large.a found locally
  feature_extractors.zip found locally
  ImarisConvert.tar.gz found locally
  opencv-2.4.6.zip found locally
  CALLING  <function install_dependencies at 0x7f9533ffad70>
  2.4.3

  Found imgcnv version 2.4.3


  Imgcnv is installed and no-precompiled version exists. Using installed version
  ImarisConvert is up to date
  No pre-compiled version of openslide exists for your system
  Please visit our mailing list https://groups.google.com/forum/#!forum/bisque-bioimage for help
  Bioformats is up to date
  CALLING  <function install_features at 0x7f9533ffb050>
  Install feature extractors (Feature Server) [Y]?
  Unpacking ./external/feature_extractors.zip into ./bqfeature/bq
  Install source code for feature extractors [N]?
  To enable the feature service to read OME-bigtiff for feature extraction install
          libtiff4
          For Debian use the command apt-get install libtiff5-dev

  Install OpenCV-2.4.6 [Y]?
  Extracted opencv-2.4.6/python2.7/cv.py -> /home/rahul/.virtualenvs/bqdev/lib/python2.7/site-packages/cv.py
  Extracted opencv-2.4.6/python2.7/cv2.so -> /home/rahul/.virtualenvs/bqdev/lib/python2.7/site-packages/cv2.so
  CALLING  <function install_plugins at 0x7f9533ff9b18>
  Try to install plugins [Y]?
  INFO 'svn'not found: cannot fetch source repositories with svn
  INSTALL PLGINS  ['./plugins']
  Checking ./plugins for modules
  CALLING  <function install_public_static at 0x7f9533ffa848>
  Deploy all static resources to public directory [Y]?
  Creating ./public
  INFO:bq.image_service.server:Available converters: openslide (1.1.1), imgcnv (2.4.3), ImarisConvert (8.0.2), bioformats (5.1.1)
  Problem loading registration = bq.registration.controllers.registration_service: 'User'

  Generating packaged JS and CSS files

  INFO:minimatic:Combined -> ./public/core/css/all_css.css:
  INFO:minimatic:Combined -> ./public/core/js/all_js.js:
  CALLING  <function install_server_defaults at 0x7f9533ffa410>
  Server config
  Top level site variables are:
    bisque.admin_email=YourEmail@YourOrganization
    bisque.admin_id=admin
    bisque.organization=Your Organization
    bisque.paths.root=.
    bisque.server=http://0.0.0.0:8088
    bisque.title=Image Repository
  Change a site variable [N]? Y
  Enter the root URL of the server  [http://0.0.0.0:8088]? http://loup.ece.ucsb.edu:8080
  Your real name  administrator account []?
  A login ID for the administrator account [admin]?
  An email for the administrator [YourEmail@YourOrganization]?
  A small organization title for the main page [Your Organization]?
  The main title for the web page header [Image Repository]?
  Installation Directory [.]?
  Do you want to create new server configuations [Y]?
  {'backend': 'paster',
  'e1.bisque.has_database': 'false',
  'e1.bisque.static_files': 'false',
  'e1.services_enabled': 'engine_service',
  'e1.url': 'http://0.0.0.0:27000',
  'h1.bisque.static_files': 'true',
  'h1.services_disabled': '',
  'h1.services_enabled': '',
  'h1.url': 'http://0.0.0.0:8088',
  'servers': 'h1'}
  The server agent for bisque [paster]?
  list of server entries to be configured [h1]?
  Install (update) paster configs (application server and configs) [Y]?
  PARAMS {'h1.bisque.static_files': 'true', 'h1.services_enabled': '', 'e1.bisque.has_database': 'false', 'h1.url': 'http://0.0.0.0:8088', 'servers': 'h1', 'h1.services_disabled': '', 'e1.url': 'http://0.0.0.0:27000', 'e1.bisque.static_files': 'false', 'e1.services_enabled': 'engine_service', 'backend': 'paster'}
  h1: the url of the server [http://0.0.0.0:8088]? http://loup.ece.ucsb.edu:8080
  h1: Services enabled []?
  h1: Services disabled []?
  Created paster config:  ./config/h1_paster.cfg
  CALLING  <function install_mail at 0x7f9533ffa758>
  Enable mail delivery [Y]? N
  CALLING  <function install_secrets at 0x7f9533ffa8c0>
  Encrypt cookies with secret phrase [CEMWOJ65]?
  CALLING  <function install_database at 0x7f9533ff9578>
  A database URI [sqlite:///data/bisque.db]?
  Trying to import driver sqlite3...
  Driver successfully imported.
  Create and initialize database [Y]?
  A database URI [sqlite:///data/bisque.db]?
  Checking whether database "data/bisque.db" already exists...
  Yes, it exists.
  Upgrading database version (alembic)
  INFO  [alembic.migration] Context impl SQLiteImpl.
  INFO  [alembic.migration] Will assume non-transactional DDL.
  CALLING  <function install_preferences at 0x7f9533ffa7d0>
  Initialize Preferences  [Y]?
  Force initialization  [N]?
  INFO:bq.config:DATABASE sqlite:///data/bisque.db
  INFO:bq.config:SQLLite special handling NullPool timoout
  INFO:bq.image_service.server:Available converters: openslide (1.1.1), imgcnv (2.4.3), ImarisConvert (8.0.2), bioformats (5.1.1)
  INFO:bq.blobs.mounts:Loaded drivers OrderedDict([('local', {'top': 'file://$datadir/imagedir/', 'mounturl': 'file://$datadir/imagedir/$user/'})])
  WARNING:bq.blobs.mounts:SQLITE does not support subtransactions: some mount service operations will fail
  INFO:bq.blobs.plugins:Resource plugins: ['(bisque_pipeline, bq)', '(cellprofiler_pipeline, cppipe)', '(cellprofiler_pipeline, cp)', '(dream3d_pipeline, json)', '(imagej_pipeline, ijm)', '(text, asc)', '(text, ascii)', '(text, zw)', '(text, hz)', '(text, txt)', '(text, utxt)', '(text, utf8)', '(table, csv)', '(table, hdf)', '(table, hdf5)', '(table, h5)', '(table, he5)', '(table, h5ebsd)', '(table, dream3d)', '(table, csv)', '(table, xls)', '(table, xlsx)']
  WARNING:bq.service:Following service were not found: set(['mnt'])
  /home/rahul/.virtualenvs/bqdev/local/lib/python2.7/site-packages/sqlalchemy/sql/sqltypes.py:226: SAWarning: Unicode type received non-unicode bind param value 'system'. (this warning may be suppressed after 10 occurrences)
    (util.ellipses_string(value),))
  NO ACTION: System object initialized at <system created="2019-02-04T10:51:57.823907" name="system" owner="http://localhost/data_service/00-2jimYQLLjB3yy3HuTwQM5c" permission="published" resource_uniq="00-UAZfWJYjDKp4yhabV3PP7S" ts="2019-02-04T10:51:57.823907" uri="http://localhost/data_service/00-UAZfWJYjDKp4yhabV3PP7S"/>
  Problem initializing preferences.. please use bq-admin preferences

  Initialize your database with:
    $ bq-admin setup createdb

  You can start bisque with:
    $ bq-admin server start
  then point your browser to:
      http://loup.ece.ucsb.edu:8080
  If you need to shutdown the servers, then use:
    $ bq-admin server stop
  You can login as admin and change the default password.

  Send Installation/Registration report [Y]? N
  (bqdev) rahul@loup:~/repository/github/bisque$

Add "config/runtime-bisque.cfg" for module configuration and docker image registry
Edit and add run config from config-defaults/runtime-bisque.defaults to config/runtime-bisque.cfg
Here are some local changes but requires docker to be setup

runtime.platforms = command
runtime.staging_base = staging/

[docker]
docker.enabled = true
# A  hub where to push containers to
docker.hub = biodev.ece.ucsb.edu:5000

C. Run Bisque Server¶

Start/Stop the server

$ bq-admin server start $ bq-admin server stop

Overview of Installation (Just for review)

workon bqdev paver setup [server|engine] bq-admin setup [server|engine] bq-admin deploy public

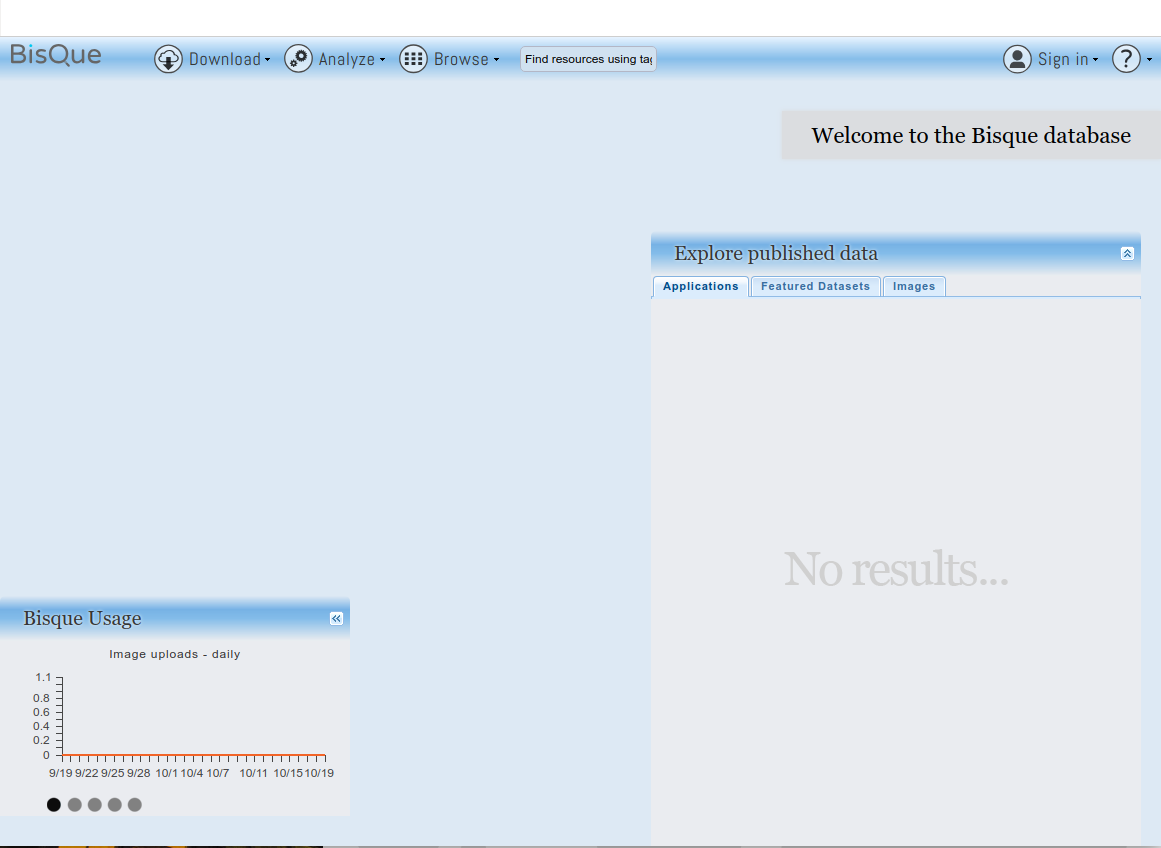

Open in browser Browser Client

D. Upload Dataset¶

Upload an image file from your local directory to Bisque

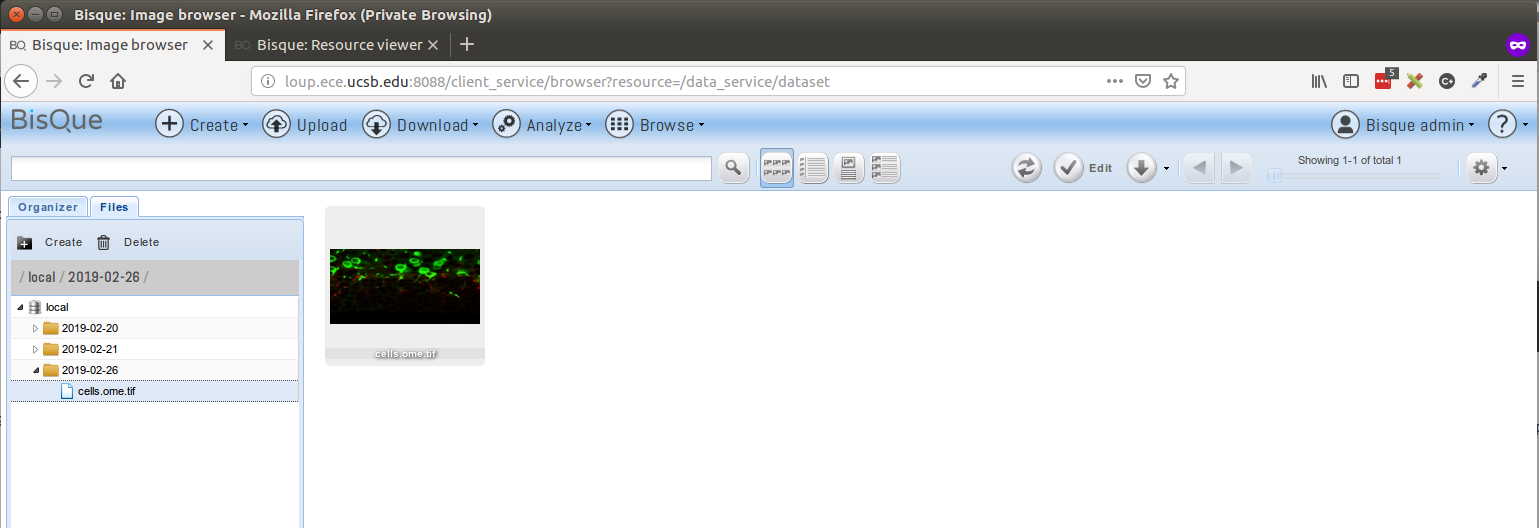

Browse uploaded dataset in the file explorer

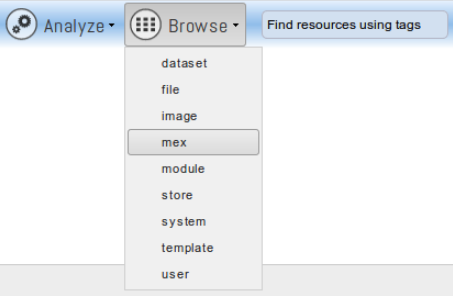

- Select Browse menu item in the navigation bar and click on dataset
- Thereafter click on the files tab and click through the local database folder in the left document tree section.

Upload Image file

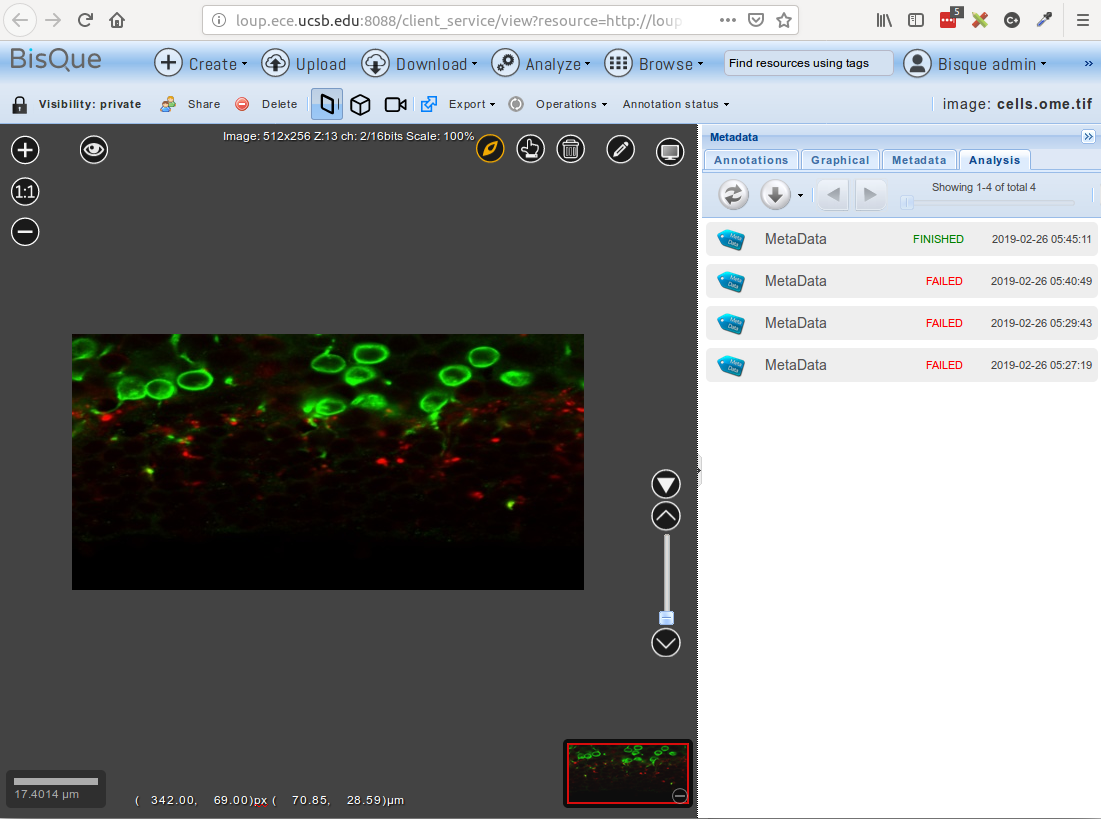

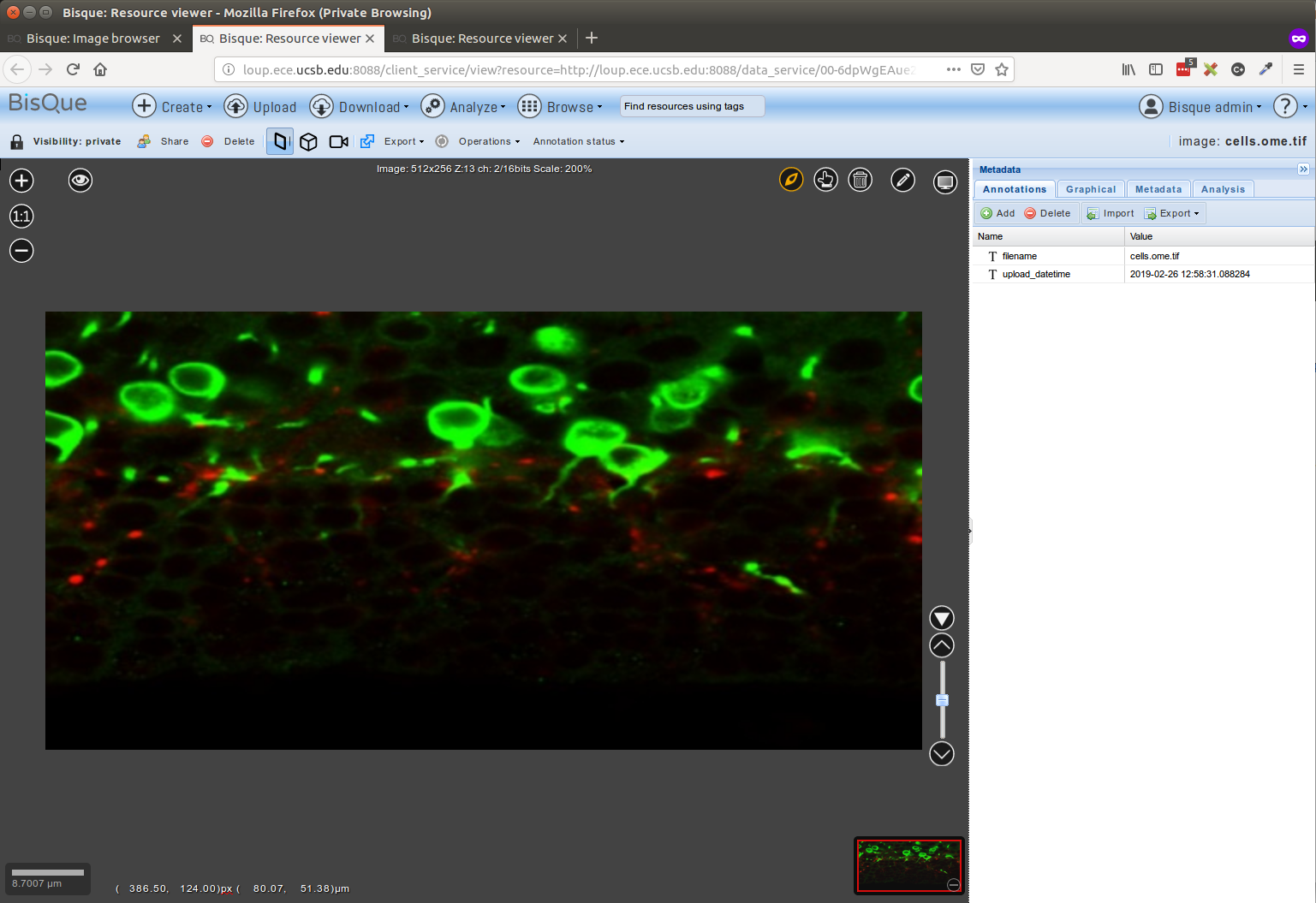

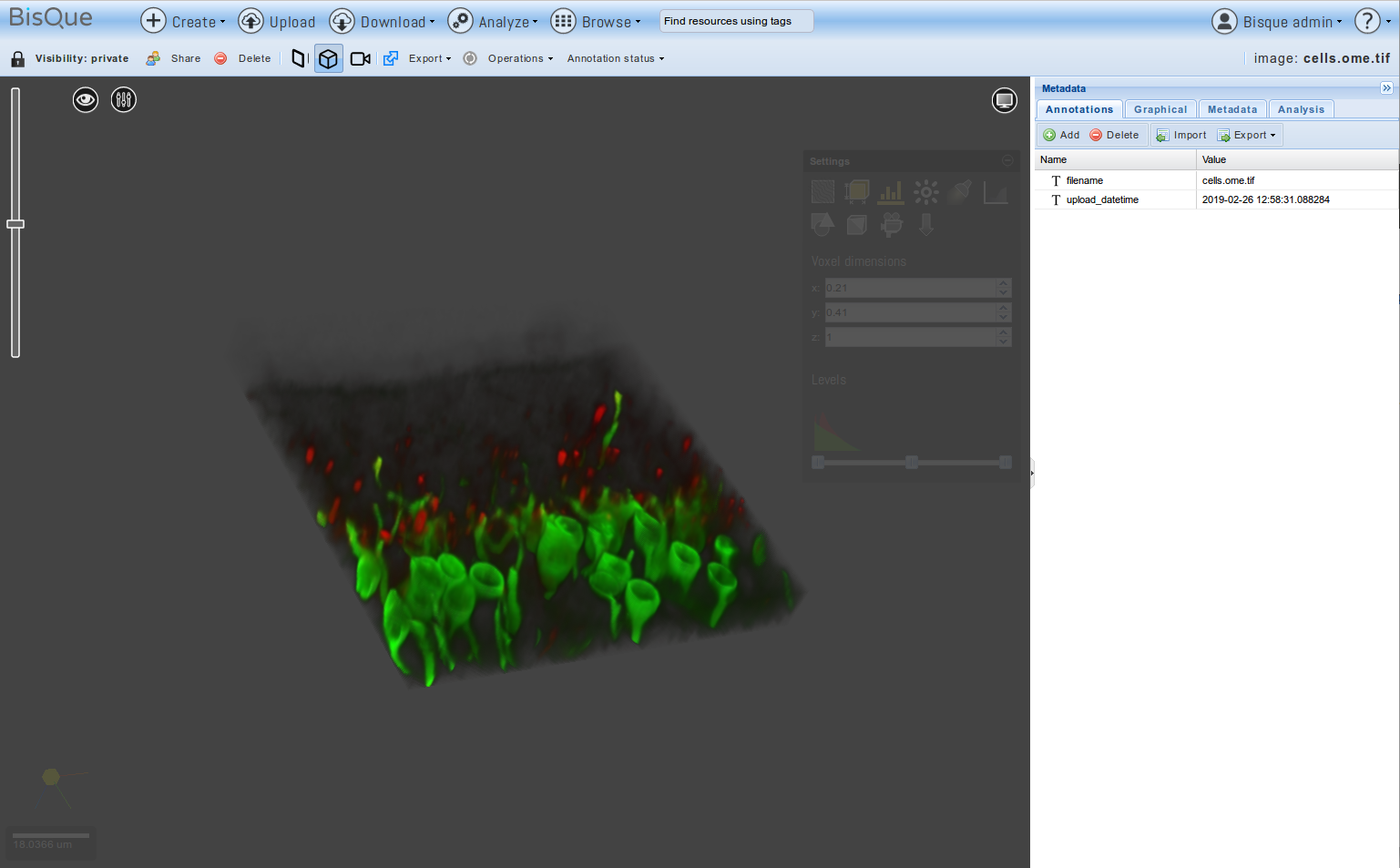

Select the uploaded file to view
- This visualization is by default 2D in nature.
- The various slices can be stepped through or played using the scroll bar on righ bottom of the image view area

View 2D Image file

A 3D visualization can be explored by clicking the cube icon towards the right of share and delete icons on the tool bar right below the navigation bar.

View 3D Image file

E. Module¶

Load/Install Module packages and dependencies¶

Lets take module/MetaData code as an example.

Ensure ~/bisque/config/runtime-bisque.cfg has the configuration as below

runtime.staging_base = staging/
docker.hub = biodev.ece.ucsb.edu:5000

Make sure the runtime-module.cfg is as per below

module_enabled = True
runtime.platforms=command
[command]
environments = Staged
executable = python MetaData.py
files = MetaData.py

Now build/compile this module

 cd ~/bisque/modules/MetaData
 python setup.py

Open up the Bisque web interface at http://loup.ece.ucsb.edu:8088

Login using admin:admin
Update the email address in the users context menu item (This is important)

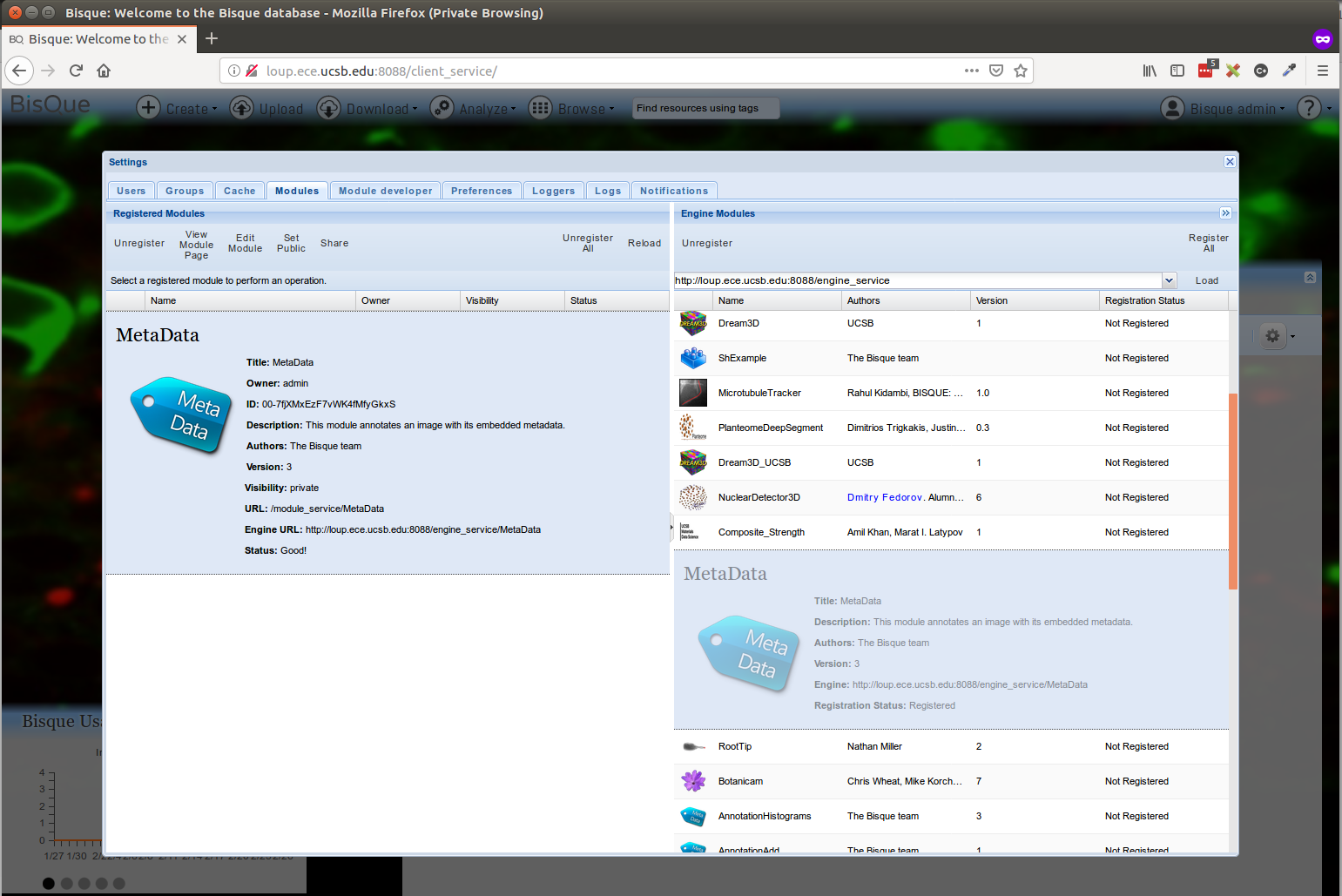

Open Module Manager from the admin user context menu
Paste the following URL in the Module->Engine Module

http://loup.ece.ucsb.edu:8088/engine_service/

List of engine modules could be seen
Drag-n-Drop say MetaData module from the list to the left window and close the window

Bisque Module

Run Module¶

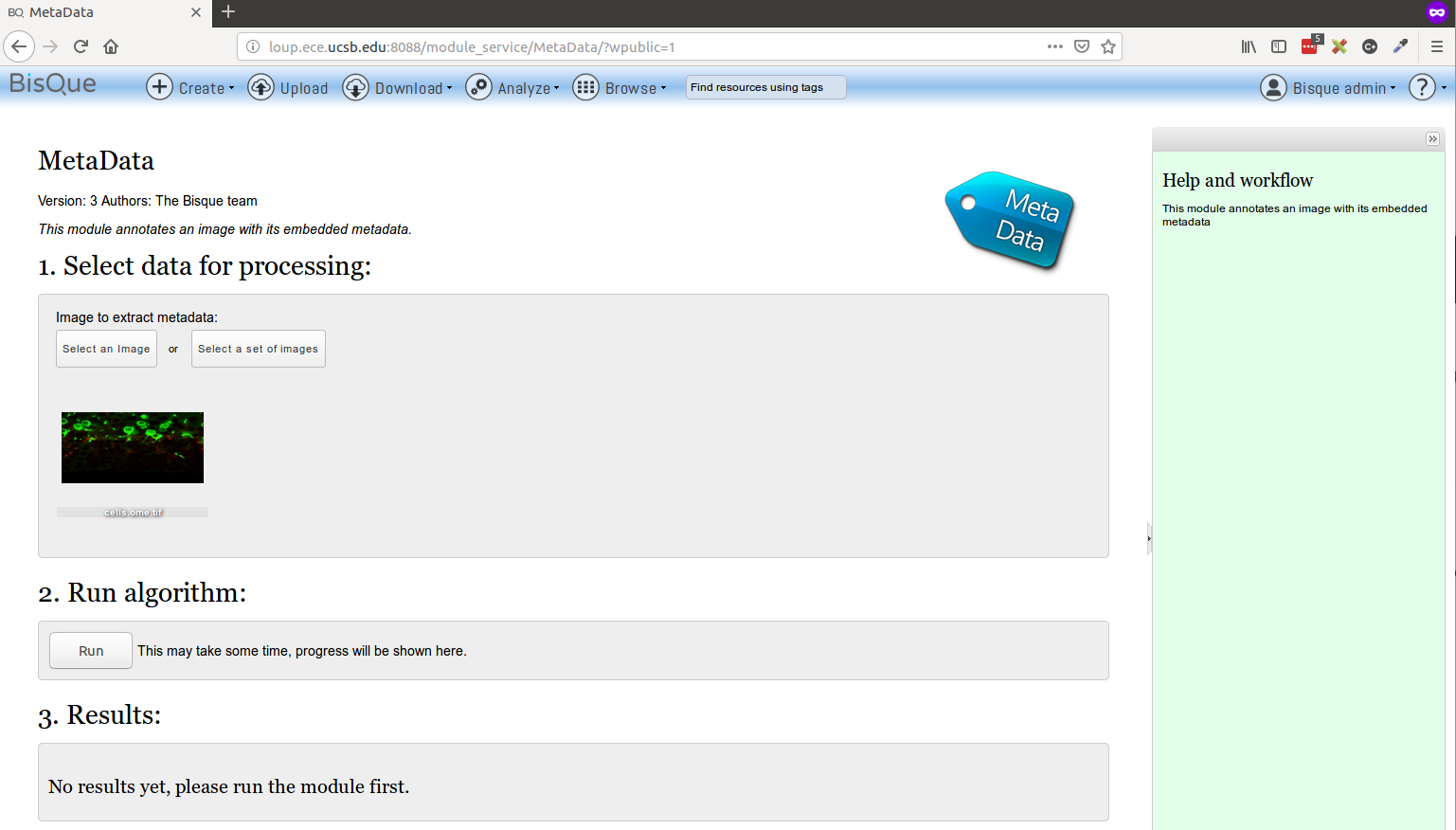

Refresh the page, go to Analyse and select Metadata module there
Select a single image for test
Execute Run command and observe the updates in the results section

F. Debug Module¶

Every module run will generate a model execution identifier to track this execution. You can observe this after clicking the run command and you have a result. It could be success or fail in the Results section

http://loup.ece.ucsb.edu:8088/module_service/MetaData/?wpublic=1#mex=http://loup.ece.ucsb.edu:8088/module_service/mex/00-ZmuAoE43wTxByycmaCnvBF

The mex identifier (==MEX_ID=00-ZmuAoE43wTxByycmaCnvBF==) observed from URL can be used to locate this execution code & resulting logs in the staging folders
change directory to this staging folder and observe the files there

cd ~/bisque/staging/00-ZmuAoE43wTxByycmaCnvBF
rahul@loup:~/bisque/staging/00-ZmuAoE43wTxByycmaCnvBF$ tree
.
├── MetaData.log
├── MetaData.py
├── python.log
└── state00-ZmuAoE43wTxByycmaCnvBF.bq
0 directories, 4 files

Here we can see that the MetaData.log and python.log files are generated
In case of issues these are the log files that we need to look into for detailed error reporting
main log file is the bisque_8088.log file at the ~/bisque home directory

13:45:11,996 INFO  [bq.root] [admin] POST http://loup.ece.ucsb.edu:8088/module_service/mex/00-ZmuAoE43wTxByycmaCnvBF?view=short
13:45:12,001 INFO  [bq.module_server] MEX APPEND http://loup.ece.ucsb.edu:8088/module_service/mex/00-ZmuAoE43wTxByycmaCnvBF?view=short
13:45:12,205 INFO  [bq.engine_service.command_run] SUCCESS Command python MetaData.py http://loup.ece.ucsb.edu:8088/data_service/00-6dpWgEAue2iz8YZcKPHejh http://loup.ece.ucsb.edu:8088/module_service/mex/00-ZmuAoE43wTxByycmaCnvBF admin:00-ZmuAoE43wTxByycmaCnvBF with 0
13:45:12,206 INFO  [bq.engine_service.command_run] All processes have returned ['finished']
13:45:12,206 INFO  [bq.engine_service.command_run] finishing 1 mexes -> [{'files': ['MetaData.py'], 'status': 'finished', 'executable': ['python', 'MetaData.py', 'http://loup.ece.ucsb.edu:8088/data_service/00-6dpWgEAue2iz8YZcKPHejh', 'http://loup.ece.ucsb.edu:8088/module_service/mex/00-ZmuAoE43wTxByycmaCnvBF', 'admin:00-ZmuAoE43wTxByycmaCnvBF'], 'initial_dir': '/home/rahul/repository/github/bisque-dev', 'module_enabled': 'True', 'named_args': {'bisque_token': 'admin:00-ZmuAoE43wTxByycmaCnvBF', 'image_url': 'http://loup.ece.ucsb.edu:8088/data_service/00-6dpWgEAue2iz8YZcKPHejh', 'mex_url': 'http://loup.ece.ucsb.edu:8088/module_service/mex/00-ZmuAoE43wTxByycmaCnvBF'}, 'bisque_token': u'admin:00-ZmuAoE43wTxByycmaCnvBF', 'environments': 'Staged', 'runtime.staging_base': 'staging/', 'mex_id': '00-ZmuAoE43wTxByycmaCnvBF', 'runtime.matlab_launcher': 'config-defaults/templates/matlab_launcher_SYS.tmpl', 'arguments': [], 'module_dir': '/home/rahul/repository/github/bisque-dev', 'staging_path': '/home/rahul/repository/github/bisque-dev/staging/00-ZmuAoE43wTxByycmaCnvBF', 'iterables': False, 'log_name': '/home/rahul/repository/github/bisque-dev/staging/00-ZmuAoE43wTxByycmaCnvBF/python.log', 'runtime.matlab_home': '', 'mex_url': 'http://loup.ece.ucsb.edu:8088/module_service/mex/00-ZmuAoE43wTxByycmaCnvBF', 'rundir': '/home/rahul/repository/github/bisque-dev/staging/00-ZmuAoE43wTxByycmaCnvBF', 'runtime.platforms': 'command'}]

This will show us the COMMAND that was run to execute this module with MEX_URL

python MetaData.py \
http://loup.ece.ucsb.edu:8088/data_service/00-6dpWgEAue2iz8YZcKPHejh \
http://loup.ece.ucsb.edu:8088/module_service/mex/00-ZmuAoE43wTxByycmaCnvBF \
admin:00-ZmuAoE43wTxByycmaCnvBF

This is the command that we can use to debug and rerun/replay this MEX in order to update the execution result. This is different from running the module again from the web interface since that will produce a new MEX_ID and create another staging folder corresponding to that.

G. Module MEX/UI¶

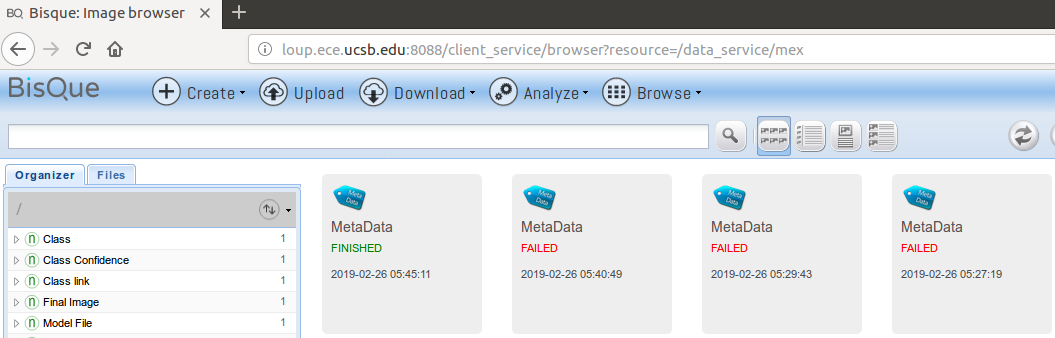

Click on Browse->mex to go to the Model execution page

Mex Module

Mex Browse

Here we will be able to see the various MEX sessions that were run for all modules under execution

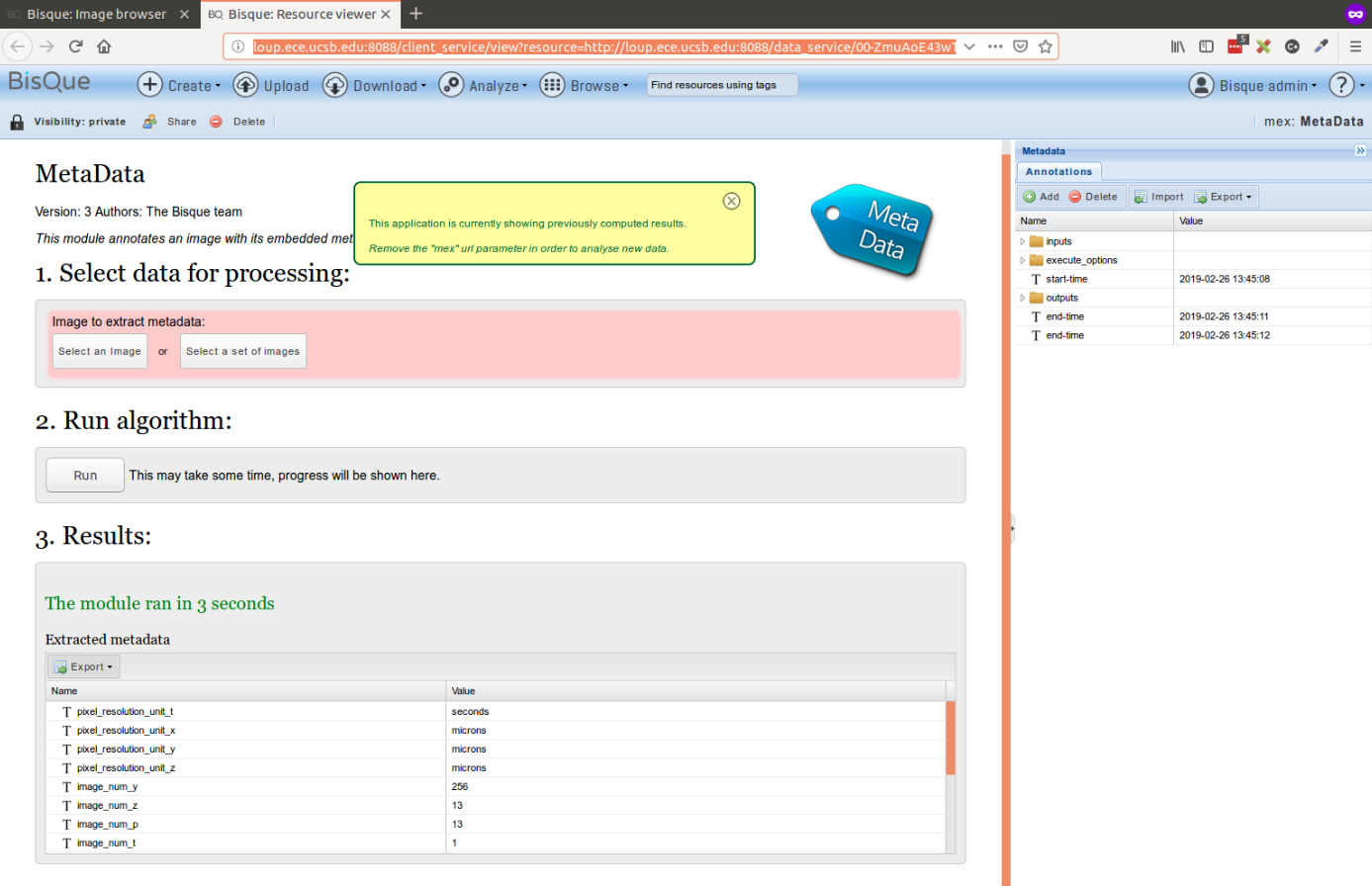

We will be able to obtain the MEX_ID and view its state from here by selecting one of the executions of interest.

Mex Success Module

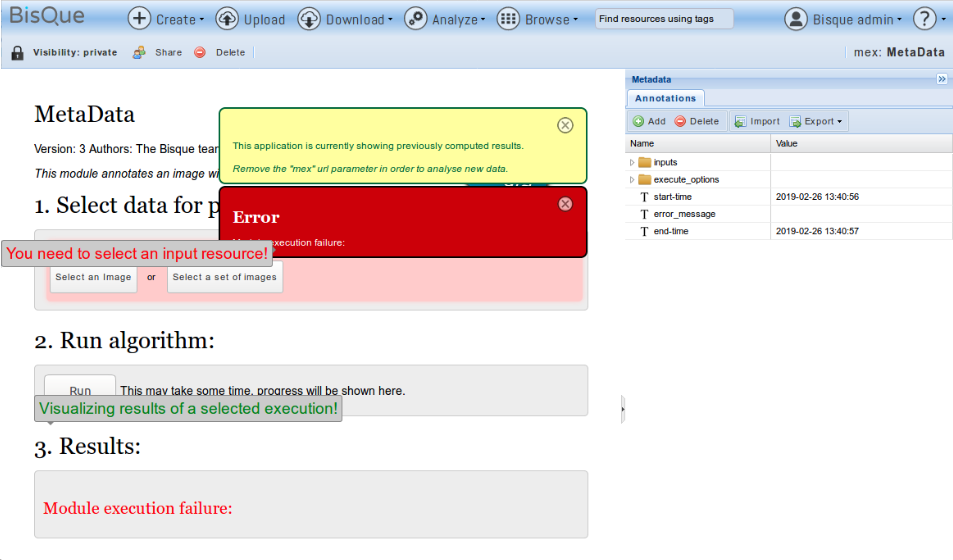

In case we select a module that has errors in it then it would turn out to show the status with messages in red

Mex Success Module

Now let us go to Browse->dataset and select the file that we ran the module for. Here we will be able to view the Annotation that was added by the Metadata module to this image.
- Annotation can be visualized using the "Annotations" tab on the right

Data Annot Module

The Model execution runs can be seen in the "Analysis" tab on the right

Data Mex Module

Further¶

Docker & Condor based modules require additional setup¶

NEXT

Install Docker (https://docs.docker.com/install/linux/docker-ce/ubuntu/)
Also go through the post-installation steps
Also install the Nvidia-docker in case you are planning to use GPU based modules or connoisseur services.
Install Condor (https://research.cs.wisc.edu/htcondor/ubuntu/)
Understand the configurations as well for master & slave setup
Bisque Condor Setup Instructions

rahul@bqdev:~$ /etc/init.d/condor restart [ ok ] Restarting condor (via systemctl): condor.service. rahul@bqdev:~$ ps -ef | grep condor

Keys	Action
`?`	Open this help
`n`	Next page
`p`	Previous page
`s`	Search

Bisque Development Environment Setup Instructions¶
